G-SMART Ducted Split Air Conditioner Heat & Cool 3.5 Ton GSD42UN13GCRE
G-SMART Cassette Split Air Conditioner Heat & Cool 1 Ton GSC12UN13GCPE
G-SMART Ducted Split Air Conditioner Heat & Cool 4 Ton GSD48UN13GCRE
Compare

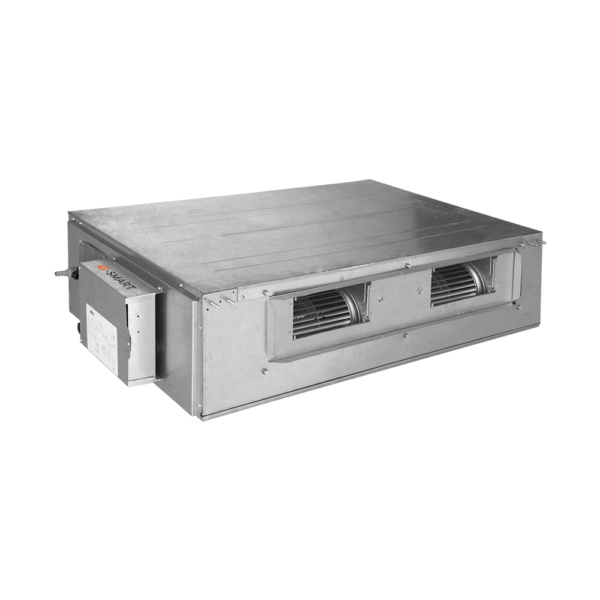

Compact and powerful, the G-Smart Ducted System offers the ultimate in flexibility and discretion. These slim indoor units are designed to be concealed above suspended ceilings or within open closet spaces to deliver conditioned air via ducting and suitable ceiling or wall grilles. This arrangement provides immense flexibility, in terms of both the distribution of conditioned air and the type of grille or diffuser that best compliments the room’s styling.
Ducted Split Air Conditioner
- 48000 BTU Capacity
- Ducted Split
- Product Type Heat Cool
- Inverter type Compressor
- R-410a Refrigerant
- T1 Region
- Power 380~415V/3Ph/50Hz
| G-Smart MODEL NO |
GSD 48UN13GCRE |
| Function |
Cooling & Heating |
| Capacity |
T1 Cooling |
Btu/h |
47768 |
| Heating |
Btu/h |
52886 |
| SEER/S.C.O.P |
W/W |
5.6/3.8 |
| Power Supply |
Ph,V,Hz |
3Ph,380-415V,50Hz |
| Power input |
Cooling |
kw |
5.10 |
| Heating |
kw |
4.50 |
| Current Input |
Cooling |
A |
8.80 |
| Heating |
A |
7.80 |
| Climate Type |
T1 |
| Indoor Unit |
|
| Airflow Volume |
m3/h |
2400 |
| Sound Pressure Level |
dB(A)(SH/H/M/L) |
55/53/49/45 |
| Outline Dimension |
mm |
1340x750x350 |
| Package Dimension |
mm |
1423x837x455 |
| Net Weight/ Gross Weight |
kg |
56.0/65.0 |
| Outdoor Unit |
|
| Sound Pressure Level |
Outdoor |
dB(A) |
59 |
| Compressor |
Brand |
Brand |
GREE |
| Type |
Type |
Inverter |
| LRA |
A |
- |
| RLA |
A |
- |
| Refrigerant |
R410a |
| Piping Connection |
Gas |
mm |
Φ15.9 |
| Liquid |
mm |
Φ9.52 |
| Outline Dimension |
WxHxD |
mm |
958x412x1349 |
| Package Dimension |
WxHxD |
mm |
1043x453x1500 |
| Net Weight/ Gross Weight |
Outdoor |
kg |
114.0/124.0 |
| Weight |
10 kg |
| Dimensions |
10 × 10 × 10 cm |
